LPG-5 Centrifugal Spray Drying Machine for Milk Liquid, Detergent Powder

LPG-5 Centrifugal Spray Drying Machine for Milk Liquid, Detergent Powder
LPG-5 Centrifugal Spray Drying Machine for Milk Liquid, Detergent PowderLPG-5 Centrifugal Spray Drying Machine for Milk Liquid, Detergent PowderLPG-5 Centrifugal Spray Drying Machine for Milk Liquid, Detergent Powder
FOB Price

US $16000.001 - 1 piece

US $16000.002 - 2 piece

group name
Spray Drying Machine
Min Order
1 piece
brand name
LTPM CHINA
model
LPG-5
Nearest port for product export
Ningbo
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union
update time
Thu, 12 Sep 2019 10:53:47 GMT

Paramtents

  • Water Evaporation 5kg/h

  • Method of Atomizing High Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available)

  • Revolution of atomizer(rpm) 25000

  • Diameter of Atomizing disc (mm) 60

  • Dried Powder Recovery Rate (%) Around≥95

  • Air input Temp 140~300℃

  • Air output Temp 70~90℃

  • Tower Height 2035mm

  • E-Heating Power 12 kw

  • Hoisting height of Nozzle(m) 1.8

Packging & Delivery

  • Min Order1 piece

Briefing

Spray Drying Machine
1.High Speed Drying
2.Easy Operation & Checking
3.All Contact Parts in SS304

Detailed

LPG-5 High Speed Centrifugal Spray Drying Machine


LPG-5 includes:

1. Whole production line as the attached drawing shows.

2. Steam Heating

3. Whole Body Stainless Steel 304

4. Air Flower

5.Button Control with inverter in Atomizer

Brief Introduction:

Spray drying is the widest used technology in the liquid shaping technology and in the drying industry. Centrifugal Atomizing (Spray) Drying Equipment is most suitable for producing powder, particles or solid block products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, spray drying is useful to create the desired particle size, residual water contents, the stocking density, and the particle shape needed to meet precise standards.

Working Principle:

The air is through the filter and heater, the air distributor which enters the dedicator top, the hot air takes the form of spiral and enters the dedicator evenly. The material liquid , from the material liquid trough from the at odds with the community or the leadership atomizer for the dedicator top of pump sending through the filter, make the material liquid gush out into an extremely small calorific drop, material liquid and hot air flow and keep in touch, moisture evaporate rapidly, within extremely short time dry to become finished product, finished product discharge by dry tower bottom and whirlwind separator, the waste gas is discharged by the air blower.

Features:

1.High speed drying. The surface area of Raw Material liquid increased a lot after atomization through nebulizer, 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.

2.Adopts Single position spray drying to make the liquid drop and hot air running in same position. Although the temperature of the air is high, the hot air contacts Liquid Drop once come into drying tank. So the temperature decreased at once to protect the material out of over heated. This is machine is also fit for the materials which are sensitive with Heating.

3.Because the drying is processed in a flash, so the finished product is Ball Shape with good mobility and good solubility.

4.The machine is Simple production with easy operation control system used for drying 50-80% moisture contained materials, even some special material with 90% moisture contained can be dried in a flash to powder. Most of the materials no need to be pulverized or sieved again after dried.

5.All contact parts are made in SS304. for easy checking and operating purpose, all of the controllers and lights are equipped in one controller.

Drying Process:


Finished Products:


Alumina Powder                  Herbal Powder                  Egg Powder


Milk Powder                        Soy Sauce Powder             Polyphenols

Main Techinical Parameters:

Item

LPG-5

LPG-25

Water Evaporation

5kg/h

25kg/h

Method of Atomizing

High Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available)

Revolution of atomizer(rpm)

25000

22000

Diameter of Atomizing disc (mm)

60

60

Dried Powder Recovery Rate (%)

Around≥95

Around≥95

Length of Covered Area(m)

1.6

4

Width of Covered Area(m)

1.1

2.7

Hoisting height of Nozzle(m)

1.8

2.5

Air input Temp

140~300℃

140~300℃

Air output Temp

70~90℃

70~90℃

Tower Height

2035mm

4500mm

E-Heating Power

12 kw

31.5kw

Notes: The evaporated amount of moisture is contingent upon the characteristics of the raw material, solid content and temperature of hot air at inlet and outlet. Customers can choose the heating method according to the conditions of the local energy source.

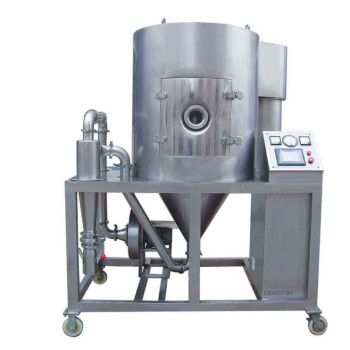

Machine Pictures:
