DPP-88 High Speed Pill pvc alu liquid Blister Packing Machine
- FOB Price
US $5500.001 - 1 piece
US $5200.002 - 2 piece
- group name
- Blister Packing Machine
- Min Order
- 1 piece
- brand name
- LTPM CHINA
- model
- DPP-88
- Nearest port for product export
- Ningbo
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Tue, 23 Jul 2019 15:37:06 GMT
Paramtents
Model DPP-88
Blanking Frequency: 15-40Punches/min
Sheet’s quantity of one blanking: 1 sheet
Capacity: 900-2100sheets/hour
Adjustable scope of feed travel: 10-110mm
Max. Forming: 120*110*15mm
Power Supply: 380V 50Hz 5.5Kw
Wrapper Specification: PVC: 120×(0.15-0.5)mm PTP: 120*(0.02*0.035) mm
Overall Dimensions: 1650*500*1100mm
Packaging Dimension: 1800*650*1250mm
Weight: 650Kg
Packging & Delivery
-
Min Order1 piece
Briefing
1. Easy Installation and Operation
2.Automatically Feeding
3.High Speed
4.Liquid Blister Packing
Detailed
DPP-88 High Speed Pill pvc alu liquid Blister Packing Machine
Product Application:
The DPP80 Blister packing machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Tachinical Data:
Model | DPP-88 |
Blanking Frequency: | 15-40Punches/min |
Sheet’s quantity of one blanking: | 1sheets |
Capacity: | 900-2100sheets/hour |
Adjustable scope of feed travel: | 10-110mm |
Max. Forming: | 120*110*15mm |
Power Supply: | 380V 50Hz 5.5Kw |
Wrapper Specification: PVC: PTP: | 120×(0.15-0.5)mm 120*(0.02*0.035) mm |
Overall Dimensions: | 1650*500*1100mm |
Packaging Dimension: | 1800*650*1250mm |
Weight: | 650Kg |
Electronic Part List:
Name | Model | Qty | Remark |
Transducer | 0.75 | 1 | Mitsubishi |
Small breaker | 40A 2P | 1 | |
10A 1P | 2 | ||
Plastic board | 500*350*8 | 1 | |
Intermediate relay | 220V | 3 | |
Solid State relay | 40A | 2 | |
Radiator | 2 | ||
Thermocouple | Model K,3m | 2 | |
Transformer | 01-8v 01-15v | 1 | Mitsubishi |
Trunking | 20*20 | 2 | |
Terminal Blocks | 25A/5P | 2 | |
15A/5P | 5 | ||
Grounding terminal | 1 | ||
Single-chip panel | 1 | ||
Plug | 1 | CHNT |

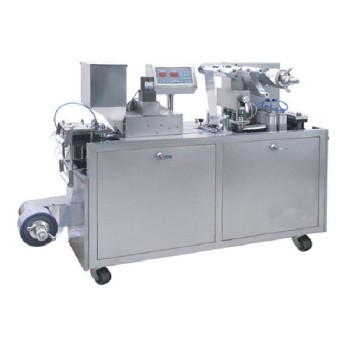

Machine Photo:
Blister Sample:
