Factory selling low price hemp oil ethanol extraction machine

Factory selling low price hemp oil ethanol extraction machine
Factory selling low price hemp oil ethanol extraction machineFactory selling low price hemp oil ethanol extraction machineFactory selling low price hemp oil ethanol extraction machineFactory selling low price hemp oil ethanol extraction machineFactory selling low price hemp oil ethanol extraction machine
FOB Price

US $15000.001 - 1 set

US $15000.002 - 2 set

group name
Extracting and Concentrating Machine
Min Order
1 set
brand name
LTPM CHINA
model
LTN Series
Nearest port for product export
Ningbo
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union
update time
Mon, 09 Sep 2019 14:43:57 GMT

Paramtents

  • Model LTN5/1250

  • The volume of extracting (m³) 5

  • Raw Material Input Capacity (kg) 500-700

  • Capacity of Concentrating Evaporator 1250 kg/hour

  • Water Circulation Capacity 20-30T

  • The time of extraction (h) 8

  • Concentrate density (%) 1.2-1.35

  • The work temperature of extracting and concentrati Water: 50-90°C Alcohol: 40-80°C

  • Power of Vacuum Pump 11kw

Packging & Delivery

  • Min Order1 set

Briefing

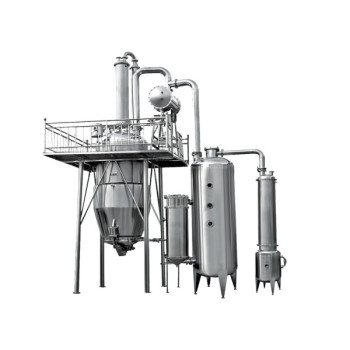

LTN Series Extraction Production Line:
Factory Selling, Low Price, Widely Used, Hot Selling, Hemp, CBD Oil Use.

Detailed

Factory selling low price hemp oil ethanol extraction machine


Machine Features:

  • Low temperature densely: The main solvent is water and ethanol in the Chinese extracted, if adopt the low extracting and low concentrating, the water extracting is control in 50℃-90℃, ethanol extracting is control in 40℃-80℃. Because of the low extracting, it can avoid the Chinese medicinal materials active ingredient, especially the organisms activated not easy to destroy, at the same time it can avoid producing the inefficacy ingredients in the high temperature, such as dextrin, colloid, tannin etc, improve the products quality, convenient for isolation and purification.
  • High drawing rate: Because of the extracting pot at the condition of the vacuum pressure and low temperature, it can enable the Chinese medicinal materials cell to expedite expand, cell membrane broken at once, at cell inside, it stripping the active ingredient. And the continuously supplement of the reflus-norma new solvent, which it enable the solvent played at the medicinal materials surface and penetrate into the medicinal materials interior, improve the medicinal attrition elution-force and the solubility, the medicinal material and the solvent keep higher gradient of concentration and extend ability, having accelerated the dissolving out of solvent of active principle of the medicinal materials ,improve the extracting rate and the harvested ointment rate of the Chinese medicinal material.
  • Save the solvent: Only need to join 8 times of solvents of crude drugs quantity once, utilize new solvent conduct of hot backset current to hot backset current to supplement, which the backset total is equal to the old extracting need 2-3 times join solvent total, it save the solvent 50%-60%, also it can increased the collecting volume of medicinal materials.
  • Save steam, the unit in closed and low temperature operation, all maintained liquid temperature in the tank keep in 50-90℃, heated steam pressure in atmospheric conditions, can significant reduction of the steam power consumption.
  • Design innovation: Through the vacuum of the vacuum converter and the height difference of the vacuum height suction of the key design, it shorten the extracting and contracting time, improve the medicinal harvested ointment rate and some active ingredient keeping rate.
  • Advanced craft: Extracting concentrating is go on meanwhile, completion gets medicinal extract directly, shortens the craft.
  • Computer controlled: Adopt the PLC main-machine interface, vacuum converted timing ect, also it can setup the temperature controlled, vacuum controlled, density controlled and production original recording printing device.
  • Lower costs: The all right equipment of aircrew simplifies, washed the convenient, the whole closed operation, has no environmental pollution, compared with necessary equipment of traditional craft, the equipment reduces by 1/3, the occupation of land reduces by 2/3, investment can save by 40%, energy consumption can be reduced by 40%, the attendant reduces by 1/3, so the production cost can be reduced by about 50%.

Hemp Seed Oil:

The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.

The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.

The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.

The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.

Used in industries such as paints and soaps.



CBD Hemp Oil:

CBD is a natural botanical concentrate. Decades of research indicate that CBD interact with the body’s system, a complex system that contributes to a variety of biological processes like inflammation responses, relaxation, sleeping, and appetite. It can be used in medicine, health care products, food and daily chemical products, etc. as active ingredients.



Techhnical Process:








Compare Form



Finished Product:



full spectrum CBD oil.jpg



Company Information






Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.



Q: What payment terms you take?

A: TT, LC, other terms are also workable.



Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.



Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
